Vässla Pedal
- Designed for everyone with a unisex frame and 24 inch tires.
- Scandinavian simplicity for ease of use and minimal maintenance.
- No gears, no display, just one button and a powerful 45 Nm hub motor.
- Only premium components.
The Core model has a driving mode that provides the highest performance and no connection to the app. PRO on the other hand, is fully digital with a connected app.
information
🚲 Seamless Commuting : With belt drive and a smart torque sensor, Vässla Pedal offers a smooth and responsive driving experience that feels like an extension of you.
🇸🇪 Scandinavian minimalism: Scandinavian simplicity is our secret. Vässla Pedal has no complicated gears or advanced display panels to complicate it. Just a single button and a powerful 45 Nm hub motor in the rear wheel - and you're on your way to adventure!
🌟 Award-winning Design : Proudly designed and developed in Sweden, our Pedal has been honored with Gold at the German Design Awards 2023.
🔋 Impressive Range: With an electric range of up to 80 km and a 45 Nm rear hub motor, you conquer the city streets with ease.

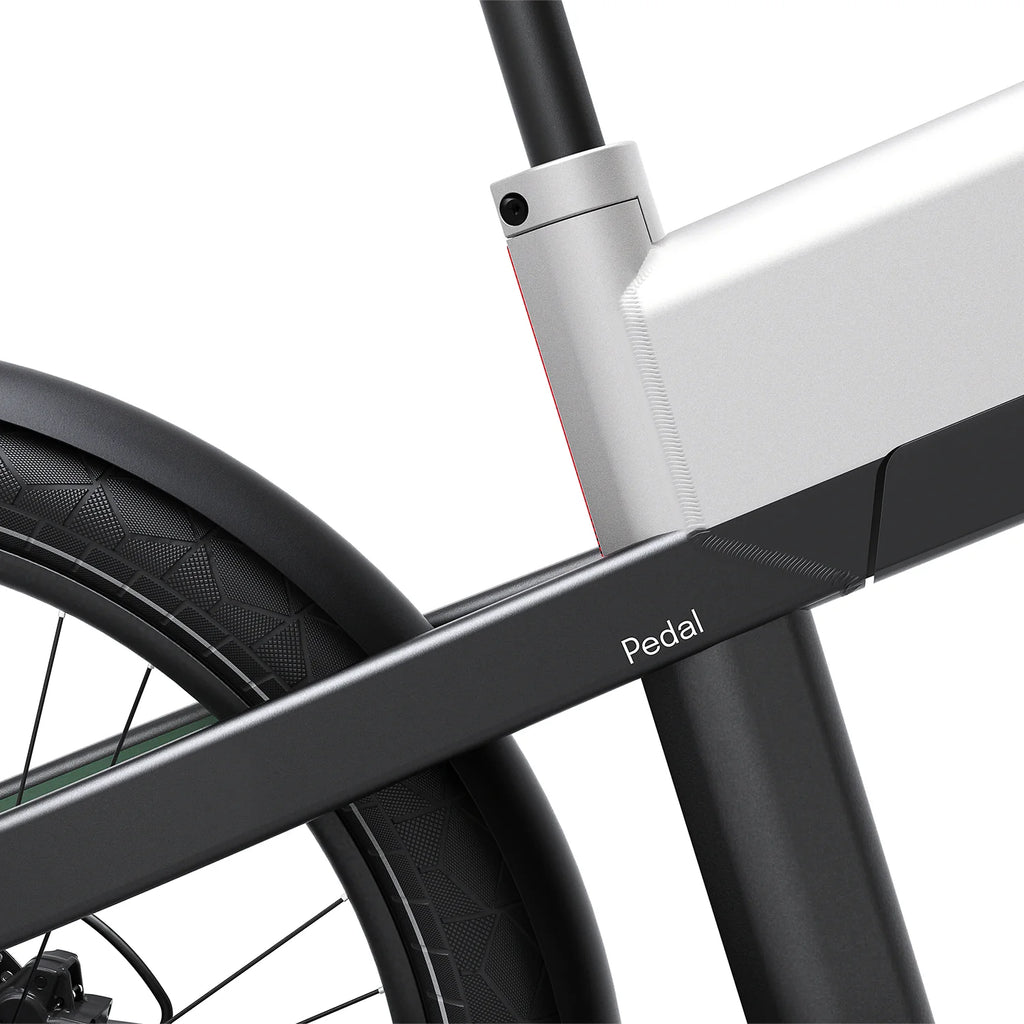

🏢 Built for City Life: Made from lightweight aluminum, this 21kg stunner is designed to handle the challenges of city life.
🔒 Secure and Connected : Our integrated and removable lockable battery keeps your Vässla safe while GPS tracking, locks and app connectivity provide ultimate control and peace of mind.
🚦 Safety First: Equipped with dual hydraulic disc brakes, integrated lighting and internal wiring, your safety is our priority.
👫 Designed for everyone
Women, men, short, tall - it doesn't matter! Vässla Pedal is designed to be your best fit, no matter who you are. We believe that every journey should be a source of joy, and your Vässla Pedal will be your companion on that journey.
So, how about jumping on your very own Vässla Pedal and start cycling towards a greener and more fun future? Order yours here and now and discover the joy of cycling!
Specifications
- Range: Up to 80 km ( PRO ) 50 km ( CORE )
- Weight: 22 kg (incl. battery)
- Ramtyp: Unisex
- Battery: Removable and fully integrated 36V 9.8Ah 10s2p 350Wh
- Mobile app: iOS and Android.
- Brakes: Tektro E-385 hydraulic disc brakes
- Operation: Belt drive with torque sensor
- Engine: 250W navmotor tank
- Torque: 45 Nm
- Lock: Digital key via app and pre-drilled frame mount for external lock.
- Connectivity: 4G modem, bluetooth and GPS tracking.
- Mobile holder: Pre-assembled bracket for SP-connect mobile bracket
- Cables: Internal cable routing.
- Awards: Gold in the German Design Awards 2023
- Development: In-house in Sweden and Germany.
- Assembly: Partner in Taiwan.
- Warranty: 2 years
Accessories
The package includes:
- Bicycle support.
- Charger.
- Mudguards.
Additional accessories:
Rear luggage rack .
Our luggage racks are compatible with ATRANVELOS' patented click system "AVS". Quantities of accessories are thus available from the start.
Of course, you can put a highchair on Vässla PEDAL .
service
We recommend contacting the nearest bicycle workshop for service or repair.
The bicycle workshop makes an initial assessment of the problem, usually they can handle all cases.
Against the presumption that it is an electrical fault/warranty matter, we at Vässla will be connected to solve it with the workshop.
Characteristics
Genus: Unisex
Type of frame: Half step through
Vehicle type: Electric assisted bicycle
Speed: 25 km/h
Wheel size: 24"
Weight without battery: 19 kg
Battery weight: 3 kg
Material ram: Aluminium
Material front fork: Carbon fiber
Connectivity: GPS, Bluetooth
Motor type: Motor with the hub in the rear wheel
Engine model: Limotec, Vässla specific.
Motor effect: 250 W
Motor torque: 45 Nm
Max climb: 10% (depending on rider weight)
Type of battery: Replaceable Li-ion battery pack
Battery cells: Samsung 21700, 10s2p = 2 pairs of cells are connected in parallel, hence the "p", and these 2 pairs are then connected in series, which the "s" refers to. = 20 cells in total.
Battery capacity: 360 Wh
Model of charger: Sans Electronics SSLC
Charging voltage: 42V, 3A
Charger indicator - Green light = ready to charge, Red light = charging.
Range: Up to 100 km
Front fork: Carbon fiber
Gear: Simple gear system

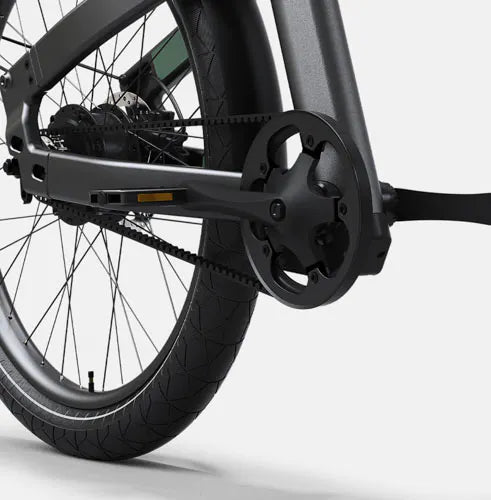

Drive: Carbon fiber belt
Type of brake: Hydraulic disc brakes
Bromsmodell: Tektro E-385

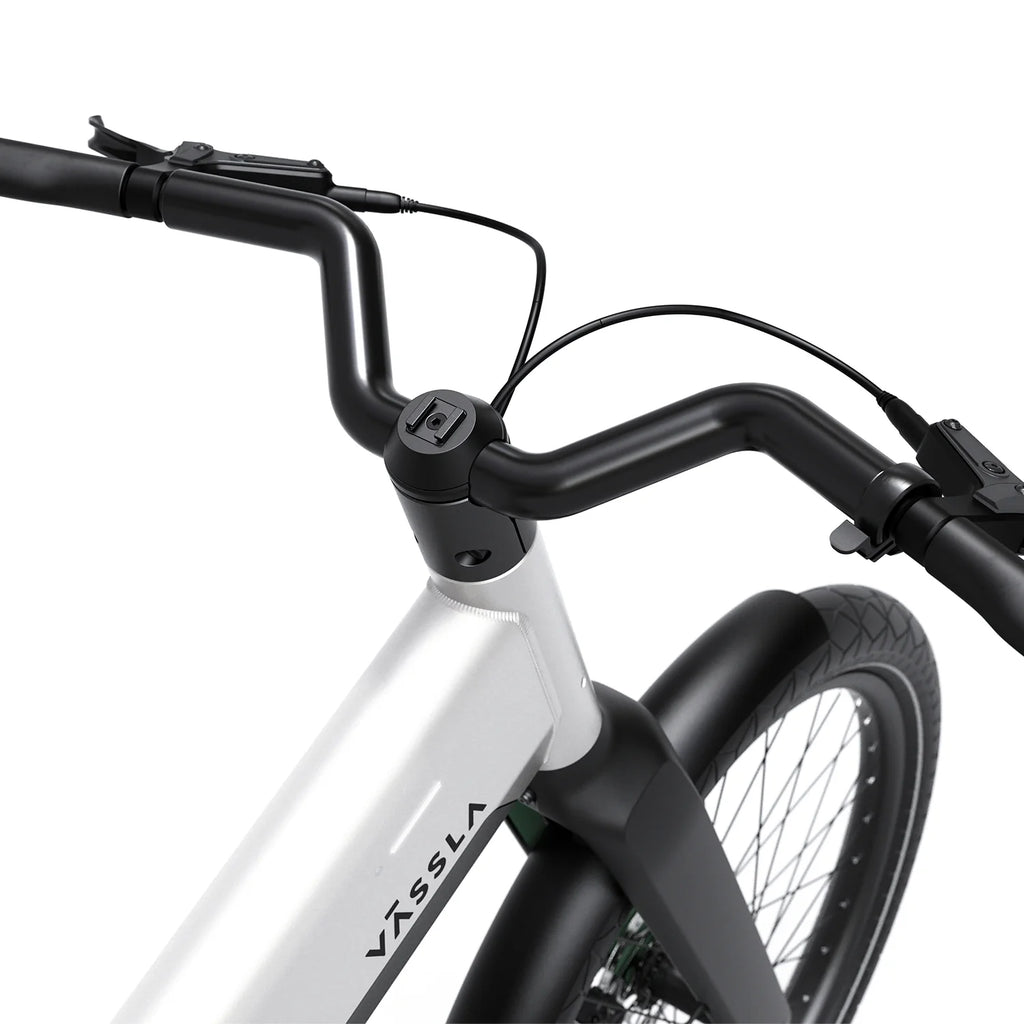

Handle: Vässla specially made
Grepp: OXO GRIP LOCKABLE Komfort
Steering rod: Vässla specially made
Sätesmodell: Velo VL-3533
Seat post: Vässla custom made
Front light model: Lezyne HECTO STVZO E65
Effect of front light: 4W, 210 lumens, 65 Lux
Rear light: Integrated LED lights in the seat post, Vässla specially made
Tire size: 24"
Däckmodell: CST C1381, 24"*2.4,61-507
Type of tire tube: Black, puncture resistant inner layer, with reflective strip
Battery Operating Temperature: Charge: 0~40°C , Discharge: -20~50°C
Storage temperature: -20~60°C (one month)
-20°C ~45°C (3 months)
-20°C ~23°C ( 1 year )
Lifetime: 500 cycles 0-100% (1000 cycles 50-100%)
SOC, battery state of charge light:
- Red flashing light<=32V 10%
- Red light >=34V 20%
- Green light >=36V 40%
- Blue light >=37V 50%
VÄSSLA PEDAL
We offer two versions of our stylish bike. Both versions deliver essentially the same bike with our award-winning design and function. PRO model adds a connected bike that you can control from our app, while CORE you start with the push of a button and can then go on an adventure.
No slope too steep

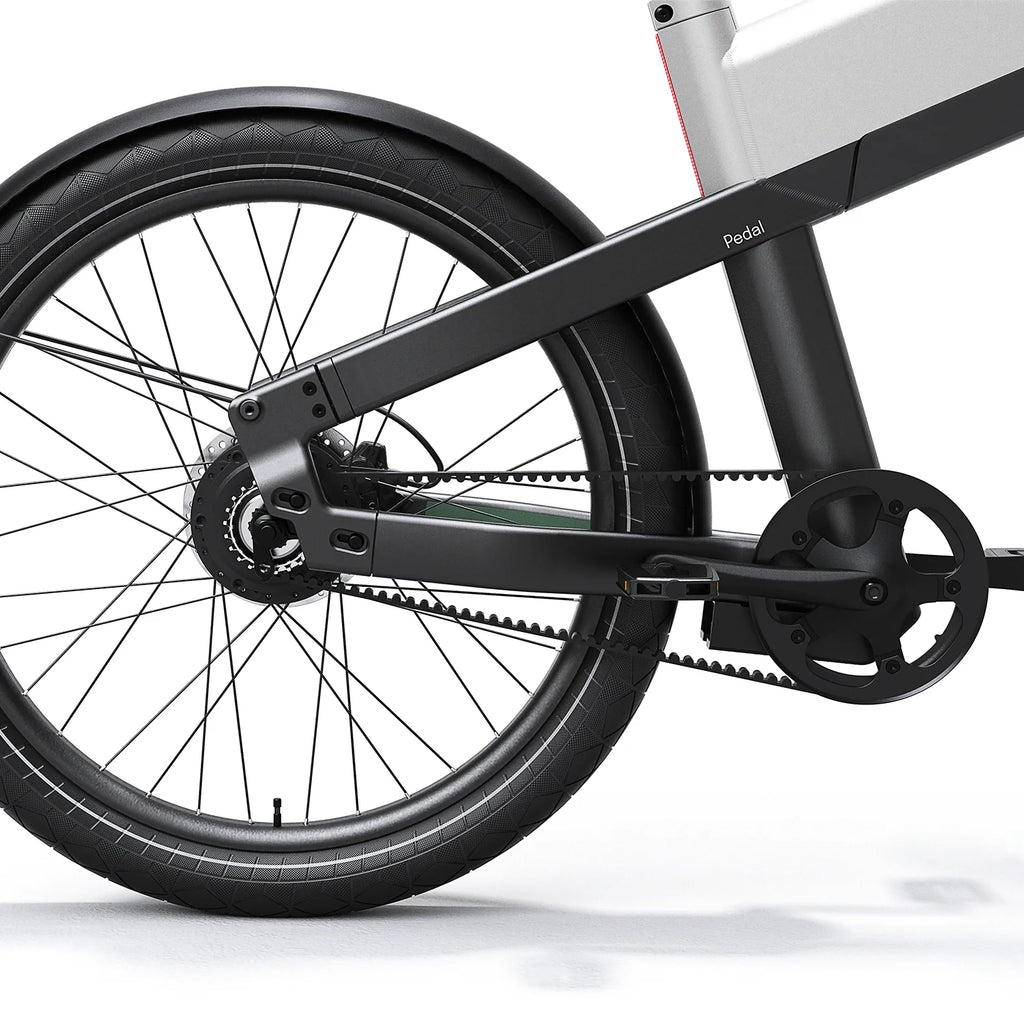

In the rear wheel of Vässla Pedal is the strong 250W/45Nm rear hub motor. Because there is more weight at the back of a bicycle, we have chosen to have rear wheel drive on our Pedal . It provides more grip on uneven surfaces, thus minimizing the risk of skidding and providing better power forward.
The powerful torque helps you tackle even the steepest slopes with ease. With three levels of assistance, you choose how much effort you want to put into pedaling, making it the perfect bike for any type of ride.
Safety is also a top priority, which is why we've equipped Vässla Pedal with Tektro hydraulic double-acting disc brakes, ensuring you can stop in an instant when you need to.
The commuter in focus
The electric bicycle has been specially designed so that you can cycle in the most optimal posture possible. The 60° seating position helps reduce pressure on your wrists and reduce the strain on your neck, meaning you can enjoy your bike ride longer without discomfort.
Whether you're commuting to work, running errands in town or just enjoying a leisurely bike ride, Vässla Pedal will make your riding experience more enjoyable than ever before. So why not upgrade your ride and experience the ultimate driving comfort with Vässla Pedal today?
For a smooth everyday life
Connect the e-bike to your phone to activate our Pedal Assist function. The app is needed to make full use of electric driving.
Riding an electric bike is a great way to lower the barrier to getting out and moving. With Pedal you can enjoy the ride without feeling like you're exerting yourself too much. Say goodbye to the hard journey and hello to the smooth bike ride!
The design of Vässla Pedal
Vässla collaborated with product design genius Christian Zanzotti to produce Vässla Pedal . His broad scope of work spans from automotive and mobility to furniture, consumer goods and lifestyle products, and he has previously worked with international clients such as BMW.
Our internal development and design studies challenge the status quo in materials and manufacturing technology, which in turn form the basis for Vässla's ground-breaking product development.
Details
We are best at 60°
With its moderate seating position, Vässla Pedal provides an optimal ergonomic driving experience. Designed to make your driving experience more comfortable and enjoyable by putting less pressure on your wrists or straining your neck. With its half-step frame, Vässla Pedal makes it possible to ride a bike, regardless of height or body type.
